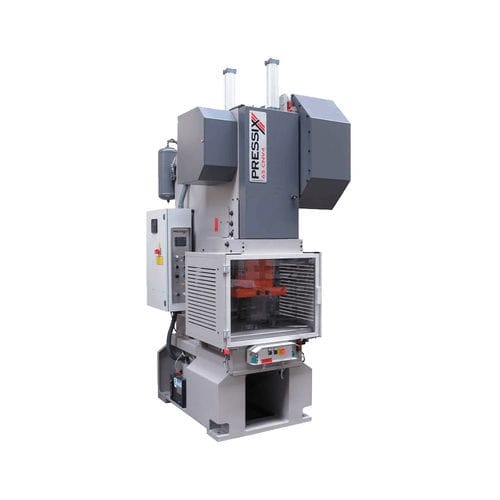

Hydraulic press 65 CNV4pneumaticformingautomatic
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, pneumatic
- Function
- forming
- Control
- automatic
- Other characteristics
- fixed
- Force
650 kN
- Stroke
Min.: 8 mm
(0.315 in)Max.: 120 mm
(4.724 in)- Hydraulic pump power
4 kW
- Weight
5,300 kg
(11,684 lb)- Overall length
1,320 mm
(52 in)- Overall width
1,570 mm
(62 in)- Overall height
2,970 mm
(117 in)
Description
high number of strokes per minute, slide with 4 bronze guideways, automatic and centralized lubrication, hydraulic release, pneumatic clutch-brake group, adjustable stroke length with toothed ring, balancing cylinders.
NOMINAL SPEED - Spm - 120
FIXED SPEED - Spm - 140
VARIABLE SPEED - Spm - 60 - 180
SLIDE ADJUSTMENT - mm - 100
SHUT HEIGHT - mm - 320
BOLSTER AREA - mm - 580 x 820
BOLSTER HOLE - mm - 165
SLIDE AREA - mm - 340 x 470
SLIDE HOLE - mm - 50
THROAT DEPTH - mm - 280
