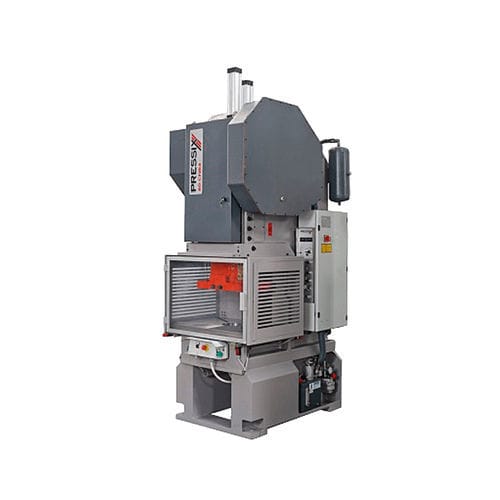

Hydraulic press 80 CNR4pneumaticformingautomatic
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, pneumatic
- Function
- forming
- Control
- automatic
- Other characteristics
- fixed
- Force
800 kN
- Stroke
Max.: 120 mm
(4.724 in)Min.: 8 mm
(0.315 in)- Hydraulic pump power
4 kW
- Weight
5,520 kg
(12,170 lb)- Overall length
1,370 mm
(54 in)- Overall width
1,610 mm
(63 in)- Overall height
2,980 mm
(117 in)
Description
slide with 4 bronze guideways, automatic and centralized lubrication, hydraulic release, pneumatic clutch-brake group, adjustable stroke length with toothed ring, balancing cylinders
NOMINAL SPEED - Spm - 53
FIXED SPEED - Spm - 65
VARIABLE SPEED - Spm - 38 - 115
SLIDE ADJUSTMENT - mm - 100
SHUT HEIGHT - mm - 370
BOLSTER AREA - mm - 620 x 880
BOLSTER HOLE - mm - 165
SLIDE AREA - mm - 400 x 500
SLIDE HOLE - mm - 50
THROAT DEPTH - mm - 300
