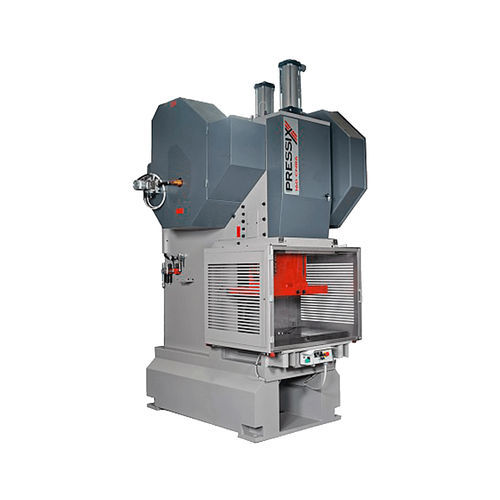

Hydraulic press 160 CNR6motorizedpneumaticforming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized, pneumatic
- Function
- forming
- Control
- automatic
- Other characteristics
- fixed
- Force
1,600 kN
- Stroke
Min.: 12 mm
(0.472 in)Max.: 180 mm
(7.087 in)- Hydraulic pump power
18.5 kW
- Weight
14,000 kg
(30,865 lb)- Overall length
1,820 mm
(72 in)- Overall width
2,460 mm
(97 in)- Overall height
3,710 mm
(146 in)
Description
slide with 6 bronze guideways, automatic and centralized lubrication, hydraulic safety, pneumatic clutch-brake group, adjustable stroke length with toothed ring and pneumatically controlled, balancing cylinders, motorized slide adjustment.
NOMINAL SPEED - Spm - 45
FIXED SPEED - Spm - 55
VARIABLE SPEED - Spm - 23 - 70
SLIDE ADJUSTMENT - mm - 110
SHUT HEIGHT - mm - 440
BOLSTER AREA - mm - 750 x 1.250
BOLSTER HOLE - mm - 165
SLIDE AREA - mm - 600 x 850
SLIDE HOLE - mm - 60
THROAT DEPTH - mm - 370
