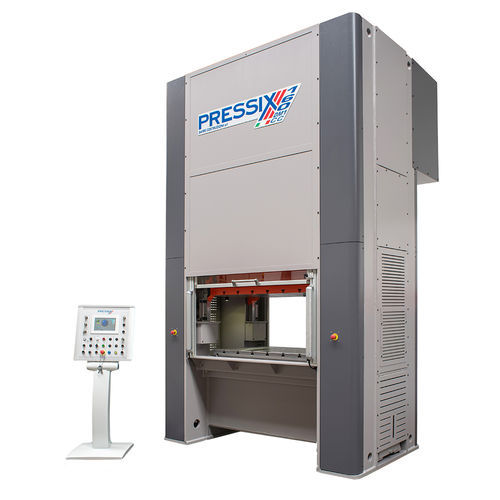

Hydraulic press 130 DM1CCmotorizedpneumaticforming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized, pneumatic
- Function
- forming
- Control
- automatic
- Force
1,300 kN
- Opening
610 mm
(24 in)- Stroke
Min.: 13 mm
(0.512 in)Max.: 160 mm
(6.299 in)- Hydraulic pump power
18.5 kW
- Weight
16,500 kg
(36,376 lb)
Description
front-back shaft system, slide with 8 bronze guideways, automatic and centralized lubrication, hydraulic safety, pneumatic clutch-brake group, automatic adjustable stroke length, balancing cylinders, motorized slide adjustment.
RATED TONNAGE POINT - mm - 6,35
ENERGY AT NOMINAL SPEED - J - 11.500
NOMINAL SPEED - Spm - 48
VARIABLE SPEED - Spm - 27 - 80
SLIDE ADJUSTMENT - mm - 110
SHUT HEIGHT - mm - 450
BOLSTER AREA - mm - 800 x 1.300
SLIDE AREA - mm - 800 x 1.300
