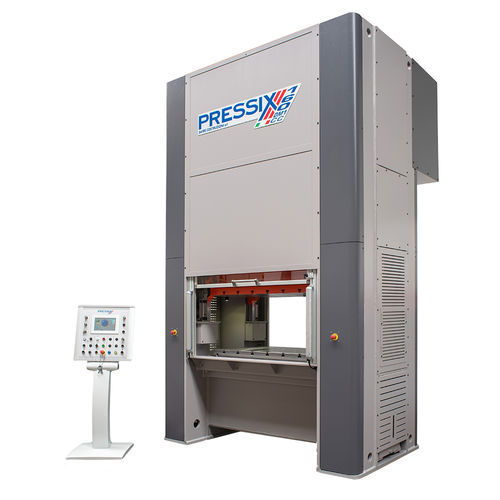

Hydraulic press 160 DM1CCmotorizedpneumaticforming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized, pneumatic
- Function
- forming
- Control
- automatic
- Force
1,600 kN
- Opening
610 mm
(24 in)- Stroke
Min.: 12 mm
(0.472 in)Max.: 180 mm
(7.087 in)- Hydraulic pump power
22 kW
- Weight
17,500 kg
(38,581 lb)
Description
front-back shaft system, slide with 8 bronze guideways, automatic and centralized lubrication, hydraulic safety, pneumatic clutch-brake group, automatic adjustable stroke length, balancing cylinders, motorized slide adjustment.
RATED TONNAGE POINT - mm - 6,35
ENERGY AT NOMINAL SPEED - J - 15.500
NOMINAL SPEED - Spm - 45
VARIABLE SPEED - Spm - 23 - 70
SLIDE ADJUSTMENT - mm - 110
SHUT HEIGHT - mm - 500
BOLSTER AREA - mm - 900 x 1.350
SLIDE AREA - mm - 900 x 1.350
