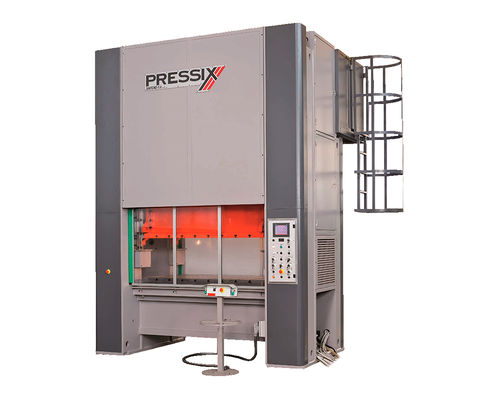

Hydraulic press 125 DM2motorizedpneumaticforming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized, pneumatic
- Function
- forming
- Structure
- eccentric, double connecting rod
- Other characteristics
- fixed
- Force
1,250 kN
- Opening
700 mm
(28 in)- Stroke
Min.: 20 mm
(0.787 in)Max.: 180 mm
(7.087 in)- Hydraulic pump power
21 kW
- Weight
17,000 kg
(37,479 lb)
Description
dual eccentric with front-back shaft system, slide with 8 bronze guideways, automatic and centralized lubrication, hydraulic safety, pneumatic clutch-brake group, automatic adjustable stroke length, balancing cylinders, motorized slide adjustment.
Fixed stroke length on request with value within the variable stroke values.
Data for the versions with Link Drive (LD), Knuckle Joint (GM) and double back-geared (R2) on request.
RATED TONNAGE POINT - mm - 6,35
ENERGY AT NOMINAL SPEED - J - 11.000
NOMINAL SPEED - Spm - 50
VARIABLE SPEED - Spm - 30 - 180
SLIDE ADJUSTMENT - mm - 150
SHUT HEIGHT - mm - 450
BOLSTER AREA - mm - 1.000 x 1.400
SLIDE AREA - mm - 1.000 x 1.400
