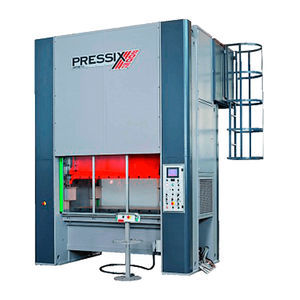

Hydraulic press 500 DM2motorizedformingdouble connecting rod
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized
- Function
- forming
- Structure
- eccentric, double connecting rod
- Control
- automatic
- Other characteristics
- fixed
- Force
5,000 kN
- Opening
1,100 mm
(43 in)- Stroke
Min.: 40 mm
(1.575 in)Max.: 315 mm
(12.402 in)- Hydraulic pump power
93 kW
- Weight
84,000 kg
(185,188 lb)
Description
dual eccentric with front-back shaft system, slide with 8 bronze guideways, automatic and centralized lubrication, hydraulic safety, pneumatic clutch-brake group, automatic adjustable stroke length, balancing cylinders, motorized slide adjustment.
Fixed stroke length on request with value within the variable stroke values.
Data for the versions with one connecting rod (DM1), Link Drive (LD), Knuckle Joint (GM) and double back-geared (R2) on request.
RATED TONNAGE POINT - mm - 8,5
ENERGY AT NOMINAL SPEED - J - 80.000
NOMINAL SPEED - Spm - 31
VARIABLE SPEED - Spm - 25 - 60
SLIDE ADJUSTMENT - mm - 250
SHUT HEIGHT - mm - 800
BOLSTER AREA - mm - 1.400 x 3.000
SLIDE AREA - mm - 1.400 x 3.000
