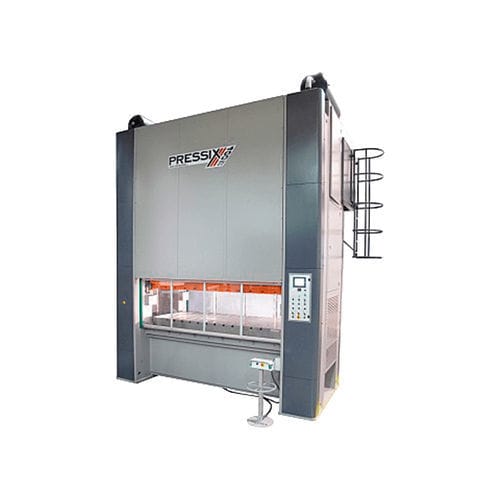

Hydraulic press 630 DM2motorizedpneumaticforming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized, pneumatic
- Function
- forming
- Structure
- eccentric, double connecting rod
- Control
- automatic
- Other characteristics
- fixed
- Force
6,300 kN
- Opening
1,100 mm
(43 in)- Stroke
Min.: 40 mm
(1.575 in)Max.: 400 mm
(15.748 in)- Hydraulic pump power
93 kW
- Weight
96,000 kg
(211,644 lb)
Description
dual eccentric with front-back shaft system, slide with 8 bronze guideways, automatic and centralized lubrication, hydraulic safety, pneumatic clutch-brake group, automatic adjustable stroke length, balancing cylinders, motorized slide adjustment.
Fixed stroke length on request with value within the variable stroke values.
Data for the versions with one connecting rod (DM1), Link Drive (LD), Knuckle Joint (GM) and double back-geared (R2) on request.
ATED TONNAGE POINT - mm - 8,5
ENERGY AT NOMINAL SPEED - J - 94.000
NOMINAL SPEED - Spm - 35
VARIABLE SPEED - Spm - 25 - 60
SLIDE ADJUSTMENT - mm - 250
SHUT HEIGHT - mm - 750
BOLSTER AREA - mm - 1.400 x 3.000
SLIDE AREA - mm - 1.400 x 3.000
