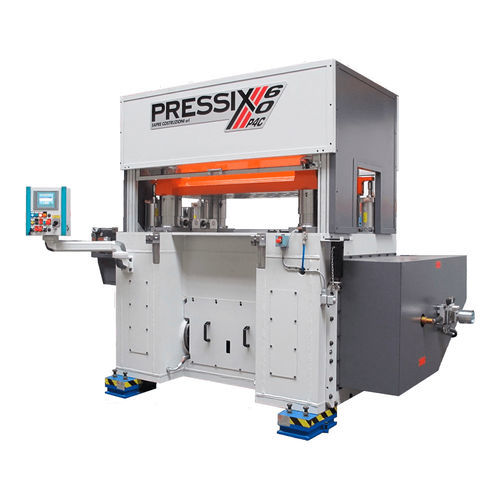

Pneumatic press 60 P4Cformingeccentric4-column
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- forming
- Structure
- 4-column, eccentric
- Control
- automatic
- Other characteristics
- fixed
- Force
600 kN
- Stroke
100 mm
(3.937 in)- Hydraulic pump power
22 kW
- Weight
14,700 kg
(32,408 lb)
Description
eccentric shaft with built-in flywheel, slide with 4 bronze guideways, automatic and centralized lubrication, pneumatic clutch-brake group, fixed stroke length for an elevated SPM rate, balancing cylinders.
RATED TONNAGE POINT - mm - 5
ENERGY AT NOMINAL SPEED - J - 3.000
NOMINAL SPEED - Spm - 85
VARIABLE SPEED - Spm - 80 - 250
BOLSTER AREA - mm - 1.110 x 800
SLIDE AREA - mm - 1.110 x 650
