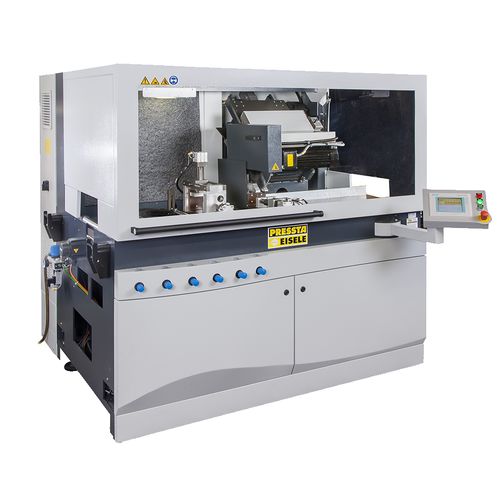

Circular sawing machine Profilma 400V

for aluminumfor non-ferrous metalsfully-automatic

• Fully automatic operation cutting of aluminium and non-ferrous metal • NC Control with touch screen display 5,7” • Piece counter showing target/actual number of pieces • Piece multiplier when cutting bundles • Indication of cycle time • Multiple feed device – max feed 3.250mm • Table separation before the saw blade retracts so the profile is not touched by the saw blade • Electronic material feeder, ball screw spindle and servo motor incl. pneumatic horizontal and vertical clamps • Float mounting feeder to balance bend profiles • Waste piece from 85mm • Reducer of clamping pressure horizontal and vertical • Cycle spray mist device with level indicator and automatic stop • Cut-off length from 3mm • Automatic cut-out when bar is finished Technical Data: • Motor up to 18,5kW, S 6 40%, 400 V, • 50 Hz, 2850 R.P.M. • r.p.m. infinitely adjustable • Saw blade speed 3.500 – 5.800 R.P.M • Saw blade Ø 400mm • Profile width max 200mm • height max 120mm
