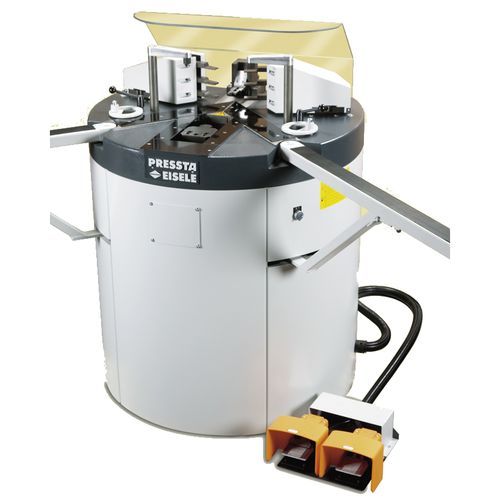

Aluminum profile corner crimping machine Pressta 7000

semi-automaticfoot-operated

• A new crimper for medium and very big sized aluminium profiles • 2 universal and adjustable punching units allow a work range • of the crimping point from 25 to 60mm from the vertex of the profile • Pneumatic crimping via lever system ensures • synchronous movement of the punching units • Hydropneumatic descending counter support for easier handling of the frames • Max profile dimensions: height 205 mm, max. crimping height 180 mm • Max profile width 100 mm + 55 mm web • Min. frame dimension inside 195 mm • 2 excenter disc for good positioning of profiles • 2 pneumatic down clamps • Adjustable height of the V-stop, crimping knives and V-blocks • 3 pairs of standard crimping knives 3/5/7 mm • 2 V-blocks 15 / 30 mm • Split horizontal punching heads to compensate profile off-set up to 40 mm • Use of 3 punching knives each crimping unit • Force 64 KN at 8 bar each crimping unit • Automatic counter support to compensate profile off-set or tolerances • V-blocks adjustable up to 160mm Operation: • Pressure: 6-8 bar • Air consumption: 40 l/stroke • Pressing power: 64 KN (6,4 to) 8 bar • Pressing height: standard head 180mm • adjustable head 180mm • Profile height max. 205mm • Heads adjustable: 25-60mm • Working height: 960mm • Weight: 460kg • Dimension: 900x760x1200mm (LxWxH)
