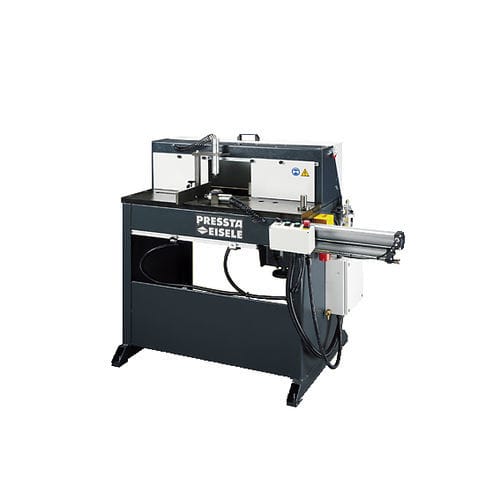

Aluminum end milling machine Primus 300PV

for PVCvariable-anglepneumatic

• Horizontal end milling machine with manual feed to machine the ends of aluminium or PVC profiles • use of milling disks, cutter blocks or special shaped disks, max. Ø 300 mm • Pneumatic feed of cutter disk, hydraulic controlled • Motor 2,2 KW, 400 V, 50 Hz • Pneumatic material clamping horizontal and vertical • Material stop adjustable 20° – 90° – 20° with scale • Tool quick change device • Notching width max. 400 mm • Notching depth max. 110 mm • Profile height max. 190 mm Options: • Electronic digital display for material stop • Depth stop adjustable by hand wheel – read out with mechanical display • Cutting disks infinitely adjustable in height by hand wheel – read out by scale •
