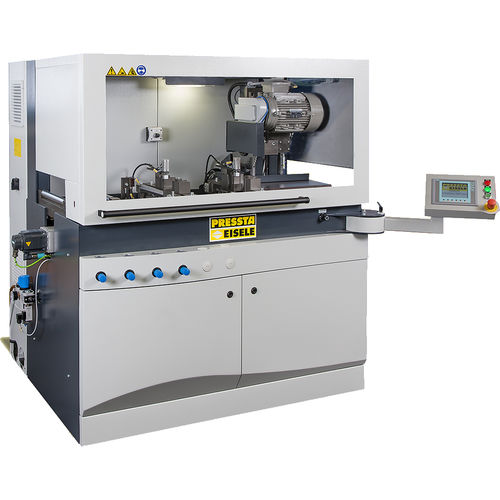

Circular sawing machine Profilma 250

for aluminumfor non-ferrous metalsautomatic

the thin-cutting automatic saw The high-performance automatic saw Profilma 250 is designed for cutting aluminum and non-ferrous metals to length with a particularly thin saw blade. Depending on the version, solid carbide circular saw blades Ø 250 mm with 1.6 mm width or Ø 200 mm with 1.2 mm width can be used on this machine. Compared to the conventional carbide-tipped circular saw blades, up to 2.5 mm can be saved per cut. • High-Performance automatic circular saw for aluminium and non-ferrous heavy metal • Fully automatic operation • Use of TCT or solid carbide blades ø 250 mm • Motor 7,5KW, 400 V, 50 Hz, infinitely adjustable • Blade feeder hydropneumatic • Material feeder with ball screw spindle and servo motor • 2-axis NC control Simatic S7-300 with 7“ touch screen • Cutting range: height up to 60 mm, width up to 140 mm • Manual safety cover • 2x Ø 100 mm swarf extraction connector • Blade feeder pneumatic hydraulic controled vertical top to down • Manual blade feed adjustment to optimize the feed length • Pneumatic clamps horizontal left and right of the blade • Diagnosis of errors, trouble shooting • Pneumatic clamps vertical left of the blade • Mist spray blade lubrication (filling level controlled) 1 l tank • Parts slide (Option: conveying belt) • Material feeder from 2 – 650 mm with ball screw spindle and servo motor • Multiple material feed possible up to 3250 mm cutting length • Vertical and horizontal clamps • Reducer of clamping pressure-4 pressure controller Part length from 2mm Remnant from 55mm-depending on profile shape
