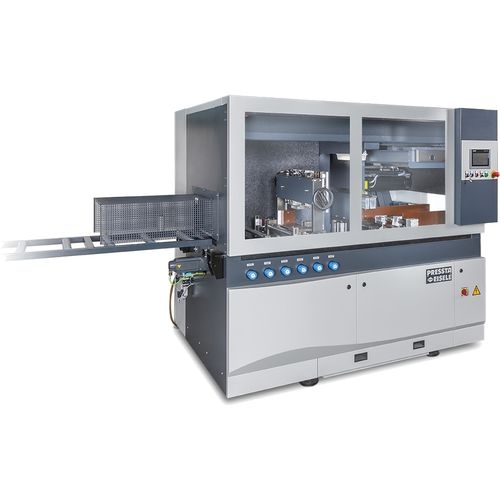

Circular sawing machine Profilma 620

for aluminumfor non-ferrous metalsautomatic

the high-performance automatic saw • High performance automatic circular saw for aluminum and non-ferrous metals • Fully automatic operation • Infinitely adjustable speed control of the saw blade engine • Material and saw feeder movement through servo driven ball screw spindle • 2 axis CNC control Siemens S7 with 7” touchscreen • Cutting range: up to 205 mm height and up to 400 mm width • Rest-piece length as short as 55 mm (depending on profile) • Machine can use carbide (TCT) or PKD blades diameter 650 mm (smaller diameter upon request) • Automatic kerf widening to reduce scratches • Individually controllable clamping pressure • Motorized material feed with servo driven ball screw • Pneumatic material clamps individually adjustable • Positioning of the vertical and horizontal clamps by hand-wheel • Cut off lengths of up to 5000 mm are possible by reversing the material feed up to 5 times • Floating material feed to reduce material abrasion • Feeder length of 1000 mm • Simple exchange of saw blade, accessible from the front • Saw blade feed is from the rear to the front above the table surface, which results in superior chip removal • Cutting speed of up to 102 m/s • Automatic Minimal sprayer lubrication unit with a monitored 2-liter tank. Adjustable lubrication levels through operation panel • Automatic kerf extension around the blade to reduce the risk of scratches • Pneumatic profile clamping units with interchangeable clamping blocks vertically and horizontally around the saw blade • In/out-feed table covered by exchangeable Pertinax plates
