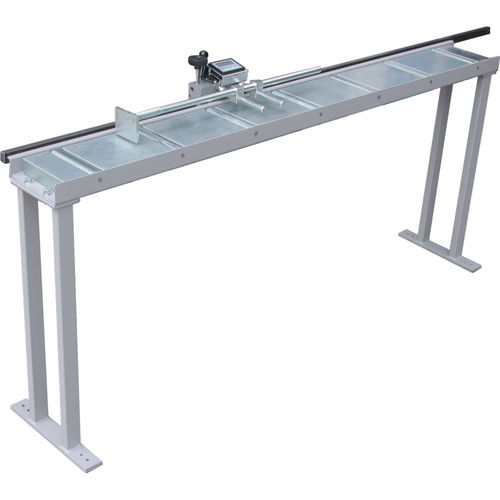

Length measuring system PE 50 d

The length measuring system PE 50 d can be positioned manually, and then be fine adjusted with a hand operated wheel. This allows for an easy positioning in the range of a tenth of a millimeter. The measuring tolerance of the system is +/- 0,1 mm/m . The measuring data is collected directly at the stop with a magnet band and sensor and displayed on a small digital display. The measuring system can be deliverey with a roller conveyor of the type RB300 or RB400, offering a width of the plasticrolls of either 209 or 407 mm. In both cases the distance between each roll is 250mm and the conveyor can carry a maximum load of 200 kg/m The systems standard coloring is RAL 7016. Available lengths: Measuring length: 1000 mm – total length: 1300 mm Measuring length: 2000 mm – total length: 2300 mm Measuring length: 3000 mm – total length: 3300 mm Measuring length: 4000 mm – total length: 4300 mm Measuring length: 5000 mm – total length: 5300 mm Measuring length: 6000 mm – total length: 6300 mm
