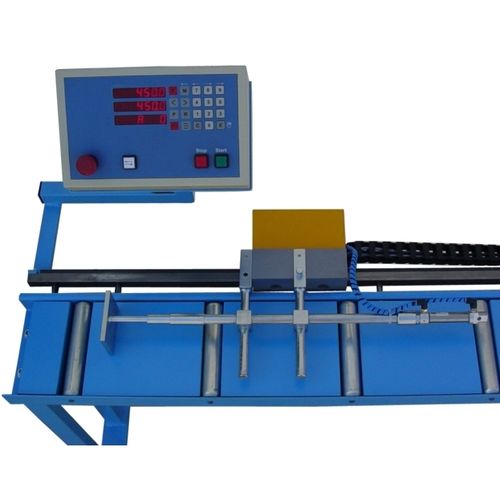

Length measuring system PE 50 e

The length measuring system PE 50 e is positioned automatically through a servo motor, after the desired measurements have been entered into the control unit. A modern adjusting positioning control unit ensures that the movable stop stays exactly in position even when under load, The measuring system PE 50 e works with a standard tolerance of +/- 0,1mm. The set position and current position can be seen on the control panel. The measuring system can be deliverey with a roller conveyor of the type RB300 or RB400, offering a width of the plasticrolls of either 209 or 407 mm. In both cases the distance between each roll is 250mm and the conveyor can carry a maximum load of 200 kg/m The systems standard coloring is RAL 7016. Available lengths: Measuring length: 2000 mm – Total length: 2600 mm Measuring length: 3000 mm – Total length: 3600 mm Measuring length: 4000 mm – Total length: 4600 mm Measuring length: 5000 mm – Total length: 5600 mm Measuring length: 6000 mm – Total length: 6600 mm Measuring length: 7000 mm – Total length: 7600 mm Measuring length: 8000 mm – Total length: 8600 mm
