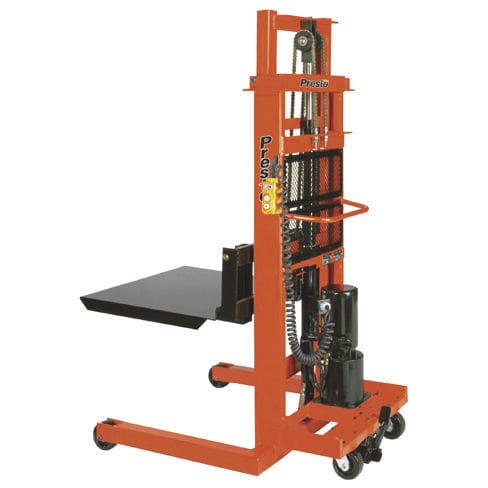

Semi-electric stacker truck EF serieswalk-behindwith platformwith adjustable fork
Add to favorites
Compare this product
Characteristics
- Energy
- semi-electric
- Operator
- walk-behind
- Other characteristics
- with platform, with adjustable fork
- Carrying capacity
1,000 lb
(453.6 kg)- Lifting height
Max.: 130 in
Min.: 50 in
- Height of mast when lowered
3.8 in, 5.3 in
- Overall width
30 in, 31 in, 40 in, 41 in
- Overall length
49 in, 52 in
- Weight
Max.: 980 lb
(444.52 kg)Min.: 480 lb
(217.72 kg)
Description
These 1,000 lb. capacity stackers are powered by standard 115V single phase power and are highly reliable. They are available in portable or stationary configurations with fixed or telescoping masts and lifting heights up to 130".
Standard units are equipped with 30" long adjustable solid steel forks. An optional 32" x 30" slip-on platform can be added. Custom designed platforms are also available.
Lift and lowering control is via standard remote control with coil cord that extends a full 20 feet.
•30" long adjustable solid steel forks 1" thick x 3" wide
•Lifting speed 4" per second
•1 HP 115/1/60 motor - other motors available
•12" high fork backs
•Leaf-type chain with 8250 lb yield point
•1500 lb and 2000 lb capacities available
