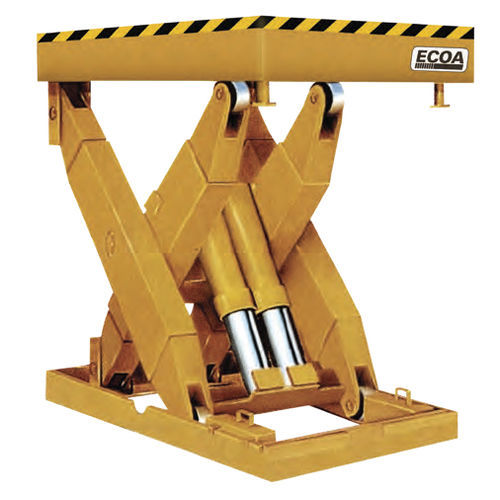

Scissor lift table MLT serieselectricstationaryfor heavy loads
Add to favorites
Compare this product
Characteristics
- Technology
- scissor
- Operation
- electric
- Type
- stationary
- Application
- for heavy loads
- Capacity
Max.: 30,000 lb
(13,607.8 kg)Min.: 15,000 lb
(6,803.9 kg)- Lowered height
16 in, 20 in
- Lifting height
Max.: 92 in
Min.: 52 in
- Tray length
Max.: 132 in
Min.: 60 in
- Tray width
48 in, 72 in
- Weight
Max.: 5,200 lb
(2,358.68 kg)Min.: 3,500 lb
(1,587.57 kg)
Description
High-capacity SUPER HEAVYDUTY electrohydraulic scissor lifts with capacities of 15,000 to 30,000 lbs., with travel distances of 30 to 72 in. and platform sizes of 48 x 60 to 72 x 132 in. or platform sizes to fit your application.
Externally-mounted power unit
Pushbutton pendant control
24V operating control voltage
Upper travel limit switch plus 8 mechanical back-up stops.
Rectangular structural tube scissor legs and torque tubes for maximum stability and minimal deflection
Dual safety restraint maintenance bars
Cylinder rod end protectors
Flow Limiter Valve at cylinder bases
Double wire braid pressure hoses
