Battery-powered stacker truck B500 series12 Vfor liftingfor heavy loads
Add to favorites
Compare this product
Characteristics
- Energy
- battery-powered
- Voltage
- 12 V
- Applications
- for lifting
- Other characteristics
- for heavy loads
- Carrying capacity
1,000 lb, 1,500 lb, 2,000 lb
(453.6 kg, 680.4 kg, 907.2 kg)- Lifting height
Max.: 78.13 in
Min.: 52 in
- Height of mast when lowered
Max.: 5.7 in
Min.: 5.3 in
- Overall width
24 in, 27 in
- Overall length
Max.: 53.5 in
Min.: 48.9 in
- Weight
535 lb, 610 lb
(242.67 kg, 276.69 kg)
Description

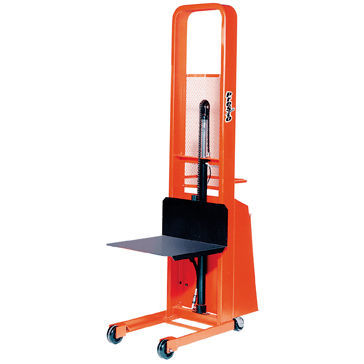

Small and extremely maneuverable stackers with powered lift and a 24" x 24" platform are ideal for a wide variety of uses. They are available in 1,000, 1500 or 2,000 lb capacity at a 15" load center.
Power is supplied by a heavy-duty 12 volt battery that generates a lifting speed of 5" per second. The leaf type chain has an 8,250 lb. yield point and a perforated metal screen to prevent physical contact during lifting and lowering.
An LED dash mounted diagnostic display provides operators with battery status. A custom microprocessor charger is built-in for fast, convenient charging in any 115v outlet.
Phenolic wheels won't damage floors and a foot operated floor lock prevents unwanted movement.
•24" x 24" Steel Platform
•Capacities: 1,000, 1500, and 2,000 lbs. at a 15" Load Center
•Lowered Height 5 1/4"
•Raised Heights: 52", 66" and 78"
•3-Position Comfort Cushion Handle
•Fixed Front Casters and Rear Swivel Wheels are 5" Dia.
•Operates in Small Areas
•Quick Disconnect Battery Cables
