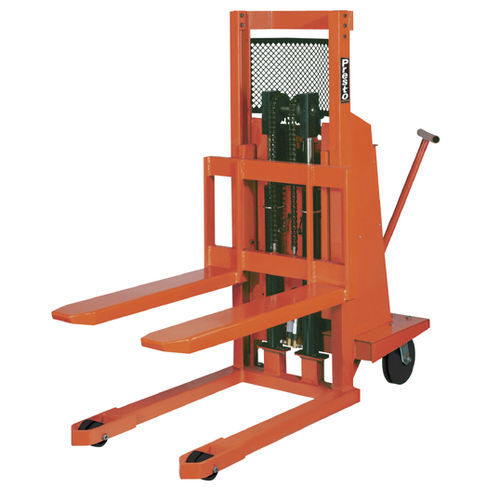

Positioning stacker truck WP seriesbattery-poweredmanualwalk-behind
Add to favorites
Compare this product
Characteristics
- Energy
- battery-powered, manual
- Operator
- walk-behind
- Voltage
- 12 V
- Applications
- transport, positioning
- Other characteristics
- for heavy loads
- Carrying capacity
2,000 lb, 3,000 lb
(907.2 kg, 1,360.8 kg)- Lifting height
36 in, 60 in
- Height of mast when lowered
2 in, 3.3 in
- Overall width
28 in, 48 in, 56 in
- Overall length
65 in
- Weight
Max.: 990 lb
(449.06 kg)Min.: 850 lb
(385.55 kg)
Description
These low mast stackers are the ultimate multifunction devices. Use them to transport, to place loads on elevated surfaces or as portable lift tables. Choose non-straddle for use with open bottom pallet and skids or straddle style for use with any type of pallet or skid. An optional slip on platform is for use as a worksurface of use with non-palletized loads.
Tiller handle steering provides excellent maneuverability.
•2" thick x 6-1/4" wide x 42" long fixed steel forks
•14" fork I.D. & 26-1/2" fork O.D.
•17" high fork carriage
•Hand-operated floor lock
•Lifting speed- 4"/sec. 2000 lb - 2"/sec. 3000 lb.
•Heavy-duty 12V battery with microprocessor charger
•Wheels: nylon front/polyurethane rear
