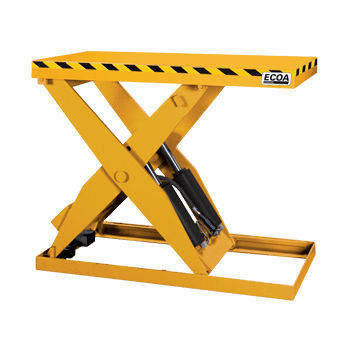

Scissor lift table HLT serieselectro-hydarulicstationaryfor heavy loads
Add to favorites
Compare this product
Characteristics
- Technology
- scissor
- Operation
- electro-hydarulic
- Type
- stationary
- Application
- for heavy loads
- Other characteristics
- custom
- Capacity
Max.: 6,500 lb
(2,948.4 kg)Min.: 2,500 lb
(1,134 kg)- Lowered height
7 in, 8 in, 10 in
- Lifting height
Max.: 70 in
Min.: 31 in
- Lift time
Max.: 46 s
Min.: 20 s
- Weight
Max.: 1,800 lb
(816.47 kg)Min.: 570 lb
(258.55 kg)
Description
ECOA’s HLTx Series Lift Tables are high-speed electrohydraulic scissor lifts with capacities from 2,500 to 6,500 lbs., and lifting heights up to 70 in.
HLT Series Lifts are available with wide range of platform sizes as well as options and accessories that allow you to configure them to best suit your specific application.
All ECOA Lift Tables are designed and constructed for heavy-duty applications under the toughest working conditions, offering years of trouble-free operation.
Standard hand control pendant
Optional foot control available
Heavy-duty hydraulic cylinders with chrome-plated rams
Polyurethane seals on cylinders
3/4" steel plate scissor legs
Lifetime lubricated bearings
Maintenance device
Custom designs available
Oversized platforms available
