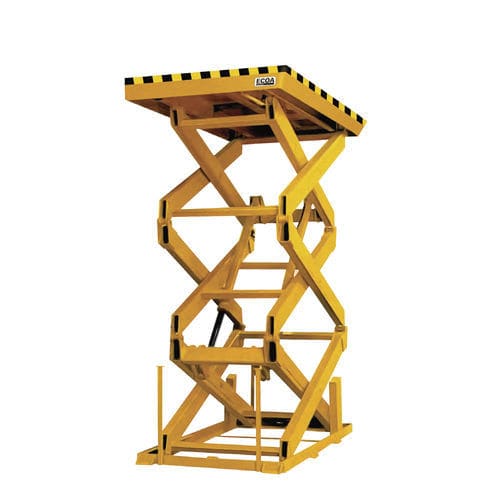

Triple-scissor lift table TSL serieselectricstationaryfor heavy loads
Add to favorites
Compare this product
Characteristics
- Technology
- triple-scissor
- Operation
- electric
- Type
- stationary
- Application
- for heavy loads
- Capacity
3,000 lb, 6,000 lb
(1,360.8 kg, 2,721.6 kg)- Lowered height
Max.: 42 in
Min.: 14 in
- Lifting height
Max.: 222 in
Min.: 110 in
- Tray length
Max.: 120 in
Min.: 48 in
- Tray width
Max.: 84 in
Min.: 30 in
- Weight
Max.: 8,000 lb
(3,628.74 kg)Min.: 2,400 lb
(1,088.62 kg)
Description
This triple lift table is designed and constructed for heavy-duty applications that require extended vertical travel. Capacities from 3,000 lbs. to 6,000 lbs are available with lift heights up to 222".
•Internally-mounted 1½ HP, 230V, 1PH, 60Hz motor
•Pushbutton pendant control with 20 ft. coil cord
•All controller components are UL and/or CSA approved
•24V operating control voltage
•Hydraulic flow limiter valve at the base of each cylinder
•Optional upper travel limit switch
•Mechanical upper travel stops
•Safety restraint maintenance bars
