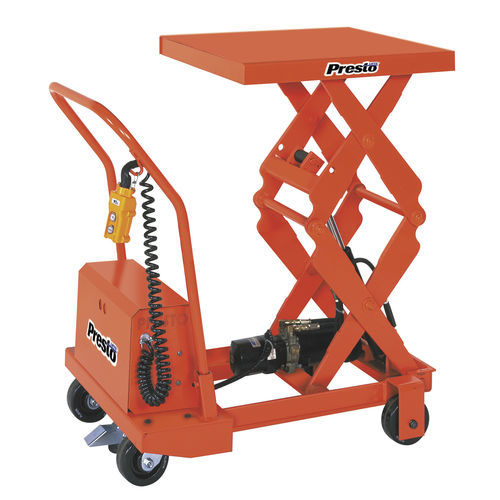

Double-scissor lift table DBP series
electricmobile

double-scissor lift table
double-scissor lift table
double-scissor lift table
double-scissor lift table
Add to favorites
Compare this product


Characteristics

Technology
double-scissor
Operation
electric
Type
mobile
Capacity

1,000 lb, 1,500 lb
(453.6 kg, 680.4 kg)

Lowered height

11 in, 12 in

Lifting height

41 in, 48 in, 60 in

Tray length

30 in, 42 in, 54 in

Tray width

30 in

Lift time

Max.: 43 s

Min.: 8 s

Weight

Max.: 700 lb
(317.51 kg)

Min.: 470 lb
(213.19 kg)

Description

The double scissor design of these lifts provides for maximum vertical travel in a compact size. These portable lift tables have superior manueverability which makes them ideal for any application that requires loads be moved from one area to another. Pushbutton control allows the operator to position the load at just the right height for loading, offloading or use as a workstation. Portability also makes them ideal for sharing a lift between multiple work cells that may not have enough volume to justify a dedicated lift. •Available in 1,000 and 1,500 lb. Capacities •Lift Heights to Over 59" •Pendant Control •2 Fixed / 2 Swivel Caster •Standard Platforms Up To 28" x 48" •Larger Platforms Available •12 Volt AGM Battery •Built-in 5 Amp Charger
