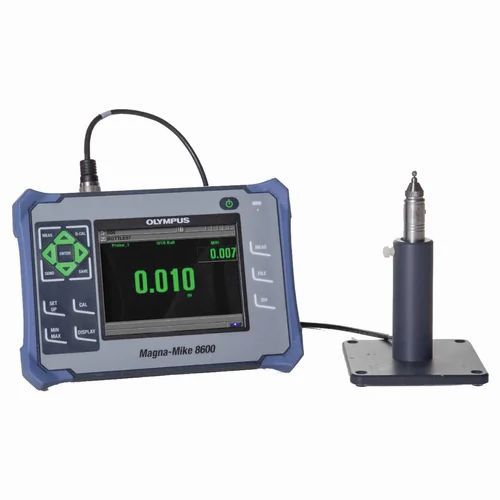

Thickness gauge Magna-Mike 8600

manualPET bottlefor the packaging industry

Presto manufactures Wall Thickness Gauge Testing instrument. It is a well-designed construction used in different production vertical to test the thickness of various ferrous and non-ferrous materials without deforming their actual shape and size. The testing device offers precise results in digital format. It works on Hall’s Effect Technology working principle that supports magnetic testing procedure for repeatable testing on a single sample. The instrument is used in a large number of applications such as PET containers, aluminum cans, glass containers, HDPE containers, paper glass and much more. Features: • Digital Display readout • RS-232 Communication Modes • Works on Hall Effect sensor • Alphanumeric data logger • Repeated test measurements are possible • Programmable device lock with password • Larger Color VGA display Specifications: • Standard Max. Thickness- 9.14 mm • Min. Thickness range- 0.001mm (0.0001 in.) • Display- Color VGA Display (Digital) • Keypad- English, Japanese, Chinese, International • Min/Max capture mode Captured at 60Hz measurement rate • Display update rate- 4,8,16 and 20Hz • Resolution- 0.1mm(0.01 in.), 0.01 mm(0.001 in.),0.001mm(0.0001 in.) (depending on thickness range) • Power- AC mains, 200-240V/100V-120V • Max. Thickness Expandable range- Upto 25.4mm (1.00 in.) (Optional)
