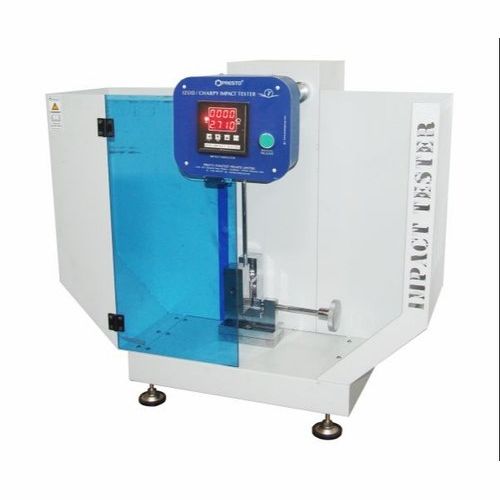

Impact tester IZC -222

resistanceindustrialbenchtop

IZOD/Charpy Impact Tester is a consistent tool to measure the impact resistance of materials under sudden falling force or impact. PRESTO IZOD/Charpy Impact Tester is manufactured under various Test Standards ASTM D256 - 10, ASTM D618 - 13, ASTM D883 - 12, ASTM D1204 - 14, ASTM D1248 - 12, ASTM E691 14. Features: • Microprocessor based display for accurate test results • Display for impact/absorbed energy and angle of test specimen • Separate fixtures for Izod and Charpy test. • Highly accurate test results under impact forces. • Strong gripping fixtures for Izod/Charpy tests. • Electromagnetic Pendulum release mechanism • Bright LED display • Inbuilt calibration facility • Feather touch controls Specification: • Capacity- Upto 21.68 Joules • Range of Scales- 2.71 J, 5.42 J, 10.84 J, 21.68 J • Display- LED (Digital) 7 Segment • Accuracy- 2% at full range . • Resolution- R1-0.02, R2-0.05, R3-0.1, R4-0.2 J respectively • Power- 220V , Single phase, 50 Hz • Release angle of pendulum- 150 • Radius of Izod Hammer- 0.79 0.12 mm • Radius of Charpy Hammer- 3.17 0.12 mm
