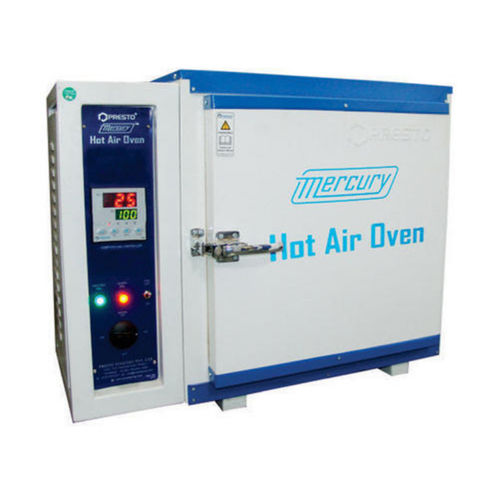

Cabinet oven PSO - 451
thermalcalibrationhot air

Cabinet oven - PSO - 451 - Presto Stantest Pvt. Ltd. - thermal / calibration / hot air
Cabinet oven - PSO - 451 - Presto Stantest Pvt. Ltd. - thermal / calibration / hot air
Cabinet oven - PSO - 451 - Presto Stantest Pvt. Ltd. - thermal / calibration / hot air - image - 2
Cabinet oven - PSO - 451 - Presto Stantest Pvt. Ltd. - thermal / calibration / hot air - image - 3
Add to favorites
Compare this product


Characteristics

Configuration
cabinet
Function
thermal, calibration
Heat source
hot air
Atmosphere
forced convection
Other characteristics
stainless steel, digital, benchtop, industrial
Maximum temperature

250 °C
(482 °F)

Description

Hot Air Oven is a unique test cabinet designed to detect the change in the physical characteristics of material and to ascertain the actual working life of testing device at elevated temperature. Features: • Temperature control through PT-100 sensor • Highly accurate test results under uniform temperatures in the chamber • High Grade imported Glass Wool insulation • Maximum Thermal Efficiency by insulation means. • Advanced Digital Microprocessor & PID based temperature controller • Inbuilt Auto tuning function • Provision to set PV and SV value • Equipped with rapid air circulation German Imported fan for uniform and homogenous heating and maintaining temperature inside the chamber • Vent for forced air changes and calibration facility • Inbuilt Calibration feature with reference to master PID controller • Bright LED display • Setting to RTD PT-100 sensor through advanced PID controller • Feather touch controls Specification: • Size- 610x915x610 mm • Display- LED (Digital) 7 segment display • Accuracy- ± 2ºC • Least Count/Resolution- 1ºC • Power- 15A, 220V AC, Single phase, 50 Hz
