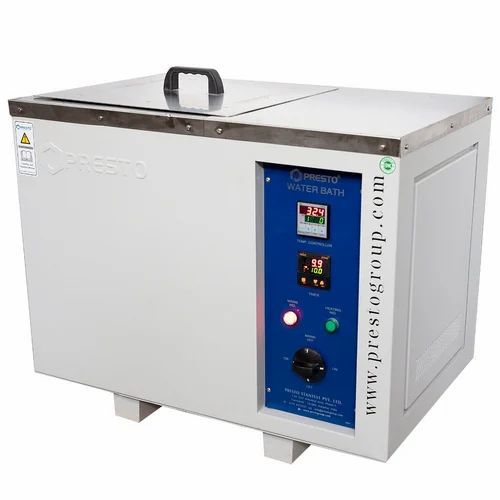

Circulating water bath PWBD-0136

laboratorywith digital displayhigh-precision

Water Bath Digital is a unique test cabinet designed to detect the change in the physical characteristics of the material and to ascertain the actual working life of test samples at elevated temperature. Available in Digital PID Temperature Control Models with Timer facility (optional) with various capacities. Features:- • Temperature control through PT-100 sensor • Highly accurate test results under uniform temperatures in the chamber • Advanced Digital Microprocessor based PID temperature controller • Provision of Set Value(SV) and Process Value(PV) on temperature display • Inbuilt Auto tuning function • Bright LED display • Equipped with rapid heaters for uniform and homogenous heating and maintaining temperature inside the chamber • Integral water drain system • Inbuilt Calibration feature with reference to master PID controller • Setting to RTD PT-100 sensor through advanced PID controller • Stirrer motor for precise stirring of sample inside the tank and for uniformity of temperature • Speed regulator for controlling the speed of stirrer Specification: • Inner Size- L 1200 x W 600 x H 600 mm • Display- LED (Digital) 7 segment • Accuracy- ± 2ºC • Least Count/Resolution- 1ºC • Power- 3 phase with Neutral, 50 Hz,20A Power socket • Water circulation motor type- Stirrer Motor • Water drain- 1/4 ball valve • Temperature Range- Upto 90ºC • Heater Wattage- 3 Kw x 3 nos.
