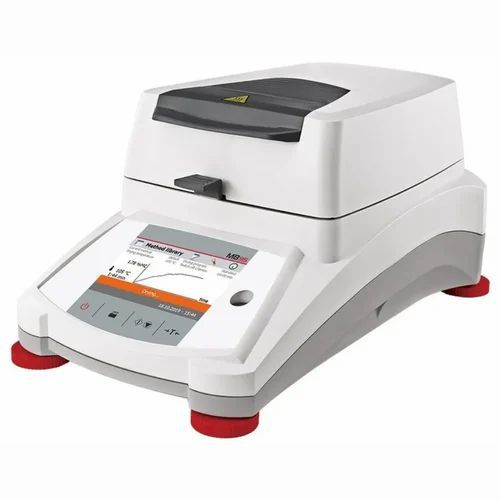

Infrared moisture analyzer M-90

with touch screenstainless steelfor the food industry

Measuring moisture content has never been easier than with the M90 Moisture Analyzer. The M90’s halogen heating distributes heat uniformly over the sample and speeds up the drying process— delivering fast and precise measurements. Designed for tool-free cleaning, the M90’s components can be easily removed for quick and easy maintenance. Operating the M90 is intuitive with the icon-driven menu navigation on the touchscreen display. Features: Faster and precise test results with Halogen heating method. Allow Tool-free Cleaning for Easy Maintainenece. Equipped with highly advanced Touchscreen display having an icon-based easy navigation system. Dual drying profiles available to choose from – Fast and Standard. Test duration mode can also be selected from – Manual, Timed and Auto profiles. Allow easy PC connection with specially designed USB and RS232 Ports. Deliver additional features such as ABS top housing, stainless steel pan support, in-use cover, memory storage up to 2 methods and 100 test results for each method, user-guide, and 13 operational languages. Specifications: Capacity - 90 g Readability - 0.01%/0.001 g Repeatability - (Std. Dev) 0.18% (3 g sample), 0.02% (10 g sample) Moisture Range - 0.01% to 100% (0.01% to 1000% for regain mode) Test Output - RS232, USB Host, USB Device Heating Element used - Halogen Temperature Range - 40–200 °C Power Input - 120 or 240 VAC 50/60 Hz Operating Temperature Range – 50 –104 °F/10–40 °C Display Type - 4.3 in/109 mm, QVGA, TFT touch screen Pan Size - 3.5 in/90 mm
