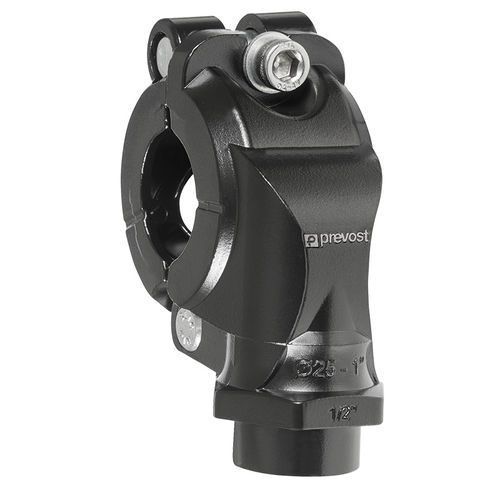

Compressed air pipe flange PPS1 - B
aluminumtapping

Compressed air pipe flange - PPS1 - B - Prevost - aluminum / tapping
Compressed air pipe flange - PPS1 - B - Prevost - aluminum / tapping
Compressed air pipe flange - PPS1 - B - Prevost - aluminum / tapping - image - 2
Add to favorites
Compare this product


Characteristics

Applications
for compressed air pipes
Material
aluminum
Other characteristics
tapping
Nominal diameter

Min.: 16 mm
(0.63 in)

Max.: 80 mm
(3.15 in)

Description

PREVOST PIPING SYSTEM, The 100% aluminium fittings : PREVOST designs and manufactures its new PPS1 100% aluminium fittings to ensure that they are the most compact and effective on the market. The body and nut are made entirely of aluminium. The tapping flange is extremely compact, and is fitted with an anti-rotation system and removable half-shell. It can be drilled without disassembly. The tapping flange enable dry air supply to the workstations by drawing air via the wall of the pipe. The water remaining in the lower section of the main pipe will be drained to a low point via an automatic drain trap. BSPP female thread G 3/8 Technology PPS Grip Concept Vacuum capability -0.98 bar (vacuum 98%) Temperature -20°C to +80°C Construction Pipe and fittings: alu. Highlight Scalable system Meets standards PED REACH
