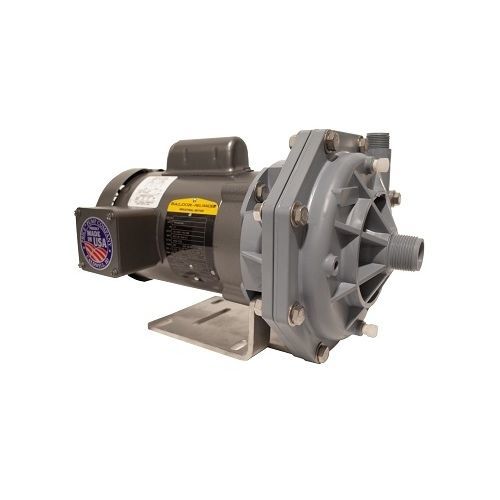

Centrifugal pump OH serieswateracidmagnetic-drive
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water, acid
- Operation
- magnetic-drive
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- sump
- Material
- metal
- Other characteristics
- compact, standard, mechanical, horizontal mount, close-coupled, seal
- Flow
227 l/min
(59.96706 us gal/min)- Pressure
8.6 bar
(124.732 psi)- Head
49 m
(160'09" )- Fluid temperature
Max.: 127 °C
(260.6 °F)Min.: -29 °C
(-20.2 °F)
Description
All non-metallic wetted parts
True volute design for high efficiency and better performance
Compact close-coupled design
Standard NEMA 56C motors
Optional power frame available
Unique sleeved impeller design
Mechanical seal: 1″ Type 36 Fluorocarbon non-metallic seal standard
Optional seals available
Optional Seal Flush
Applications
Sump Pumping
Electronics
Photo Processing
Water Treatment
Acid transfer
Chillers
Metal etching
Recirculating
