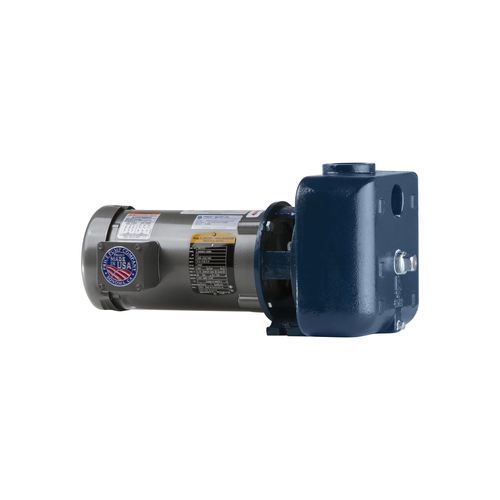

Centrifugal pump SP series
watermagnetic-driveself-priming

Centrifugal pump - SP series - Price Pump - water / magnetic-drive / self-priming
Centrifugal pump - SP series - Price Pump - water / magnetic-drive / self-priming
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
water
Operation
magnetic-drive
Priming
self-priming
Mobility
stationary, mobile
Domain
industrial
Material
cast iron, ceramic
Protection level
standard
Other characteristics
compact, standard, mechanical, horizontal mount, close-coupled, open, seal, flush
Flow

568 l/min
(150.04973 us gal/min)

Head

29 m
(95'01" )

Fluid temperature

149 °C
(300.2 °F)

Description

Compact close-coupled design Standard NEMA 56C motor Mechanical seal: 3/4″ Type 21 Buna, carbon vs. ceramic standard on cast iron pumps; 3/4″ Type 21 Fluorocarbon, ceramic vs. carbon is standard on 316SS pumps Self-priming pump Optional seal face materials and elastomers available Semi-open impeller Seal flush available Optional power frame available Back pull out design
