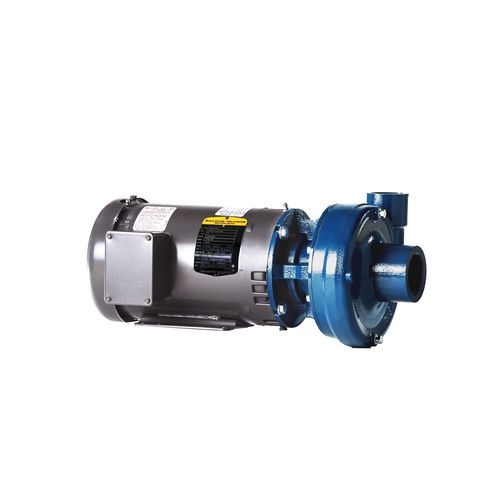

Centrifugal pump XT serieswatermagnetic-driveself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- magnetic-drive
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Material
- cast iron, PTFE, bronze, ceramic
- Protection level
- standard
- Other characteristics
- standard, mechanical, horizontal mount, double, seal, flush
- Flow
1,514 l/min
(399.95649 us gal/min)- Pressure
14 bar
(203.053 psi)- Head
41 m
(134'06" )- Fluid temperature
149 °C
(300.2 °F)
Description
Standard NEMA JM motors; ODP, TEFC, XP… 56Calso available
Mechanical seal: 1-1/2″ Type 21 Fluorocarbon, carbonvs. ceramic standard. Type 9 PTFE and Type 21 Fluorocarbon double sealoptional
Seal flush and seal quench optional
Optional power frame available
Close coupled through — horsepower
Replaceable shaft sleeve
Materials:
XT (Tangential Threaded) (316SS, Cast Iron, and All Bronze and Cast Iron Bronze Fitted)
