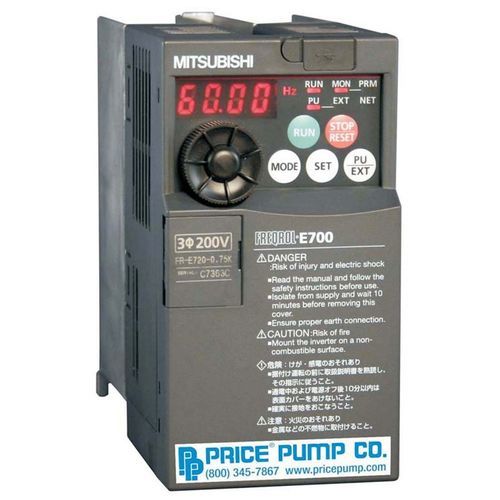

Vector control variable frequency drive E700 series

Modbus

Vector Control Capability in a micro drive — delivering outstanding performance for your centrifugal pumps. Advanced general-purpose magnetic flux vector control, optimum excitation control, V/Hz control and soft-PWM control High accuracy PID control that accepts 4-20mA, 0-5 or 0-10 VDC inputs Easy to use scrolling dial for quick setup USB, Modbus RTU, RS-485, CC-Link, DeviceNet, Profibus-DP, LonWorks communication and more 200% motor overload protection for 3-seconds 0.2 to 400Hz output frequency range Overcurrent, overvoltage, undervoltage protection 7 digital inputs with 1 digital output Variable-torque load setting Optimum excitation control for energy savings 10 year design life 5 year warranty
