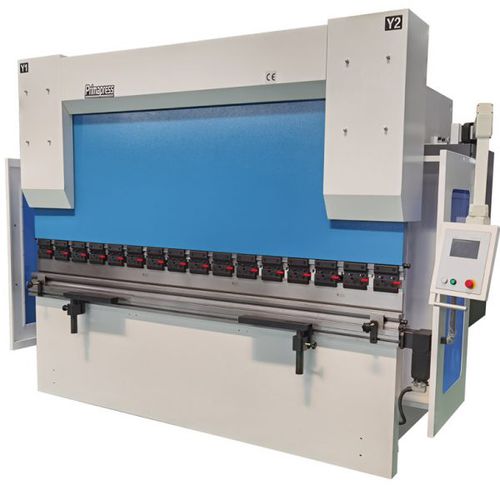

Hydraulic bending machine

electricmanualsheet metal

cnc electro hydraulic cnc press brake bending machine Required specifications for reference. No - Items - parameters - remarks - Leading Bending technology Excellent Manufacturer Nominal force - 2000KN - Bending length - 3200mm - Distance between - 2550mm - Throat - 400mm - Stroke - 250 mm - Max open height - 420 mm - X, Y axis travel - repeat positioning accuracy: ±0.02mm Approach speed(max) - 160mm/s - Working speed - 120mm/s - Backing speed - 140mm/s - Control axis - X,Y1,Y2,R, CNC control - Dimension - 3500x2000x2700mm - Removable Electrics - 380V/50Hz/3Ph - Optional Motor - 11 - Kw Attachment with the machine& Machine key components list No. - 1 years spares - Remark - - Name - Origin 1- - Grease gun& foot switch - Free of charge - - Asynchronous motor - Siemens, Germany 2- - Keys to button lock and electric cabinet lock - FOC - - Controller - Delem DA53T, Holland 3- - Foundation bolts - FOC - - Transformer - SCHNEIDER 4- - O-type sealing rings - FOC - - AC contactor - SCHNEIDER 5- - Combined washers - FOC - - Circuit Breakers - SCHNEIDER 6- - Mobile type foot switch - - Servo motor - Estun 7- - Operation & maintenance manual - In English - - Gear pump - Siemens pump 8- - Electrical diagram - In English - - Sealing parts - Valqua ,Japan 9- - Operation Instruction ENGLISH Operation Instruction（Machine） Packing list, Instruction of System Certificates of quality Hydraulic Integrated Systems - Bosch, Germany, Quick release - China Shanghai
