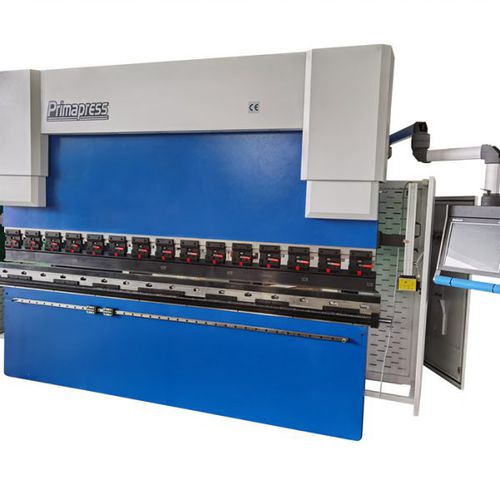

Hybrid press brake DA66T

electro-hydraulicelectric and hydraulicCNC

DA66T aluminum iron plate 8+1 axis CNC servo hybrid hydraulic press brake bending machine 1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment 2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany. 3. Electro-hydraulic servo CNC, Y1, Y2,for Oil cylinder stroke X, R for back gauge , Z1,Z2 for back gauge fingers, V for Hydraulic compensation. 6 + 1 axis 4. The stroke and distance of the back gauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by DA66T. 5. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays. 6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety DA66T aluminum iron plate 8+1 axis CNC servo hybrid hydraulic press brake bending machine Components list: CNC Axis Control : 3+1 (Y1-Y2-X+V ) 4+1 (Y1 -Y2- X-R + V ) & 6+1 (Y1-Y2-X-R-Z1-Z2+V) 8+1 ( Y1-Y2-X1-X2-R1-R2+V) Hydraulic Valve: BOSH-Rexroth Oil Pump: BOSH-Rexroth Oil Cylinder: CHINA famous brand Main Motor: Estun Servo Motor & Siemens Normal Motor; Linear Encoder: Fagor & Heidenhain Crowning: Motorized Crowning & Hydraulic Cylinders & Manual Pedal Switch: CHINA famou brand Electrics: Schneider Clamps: WILA Hydraulic Clamping & KMechanical fast Clamp Ball Screw Rod: TAIWAN HIWIN Linear Guide: TAIWAN HIWIN Front Support: Support with Dual Linear Guide & Following Supports Systems Tooling: WILA Tooling & China Famous Brand tooling & Customized
