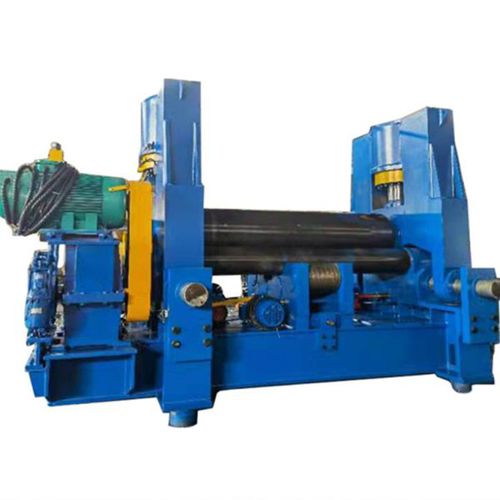

3-roller plate bending machine W11S-50×3200

electrichydraulicCNC

Heavy duty plate 3 rollers hydraulic steel plate rolling machine iron metal round bending machine Heavy duty plate 3 rollers hydraulic steel plate rolling machine iron metal round bending machine Technical sheets: Max. Thickness of plate 50mm(CS),40mm(SS) Max. Pre-bending thickness 40mm(CS),32mm(SS) Max. Width of plate 3200mm The length of working rolls 3300mm Top pressure 540T Up roller diameter 600mm Bottom roller diameter 340mm Central distance 610mm Support roller 340mm Support roller group one group (4 pieces) Minimum bending diameter 1200mm Yield limit 245MPa Bending speed 4m/min Main motor 55KW 1.The Feature of Hydraulic Plate Rolling machine : -The machine widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy, power transmission towers and other machinery and equipment. Its working principle is rotating bending deformation. – A cylinder can be rolled, including the pre-bending of both ends, feeding the plate forward through the rolls, one time only. The operator should find one only position for each side roll, to get part finished. Permanent lubrication technology(bearing life period without refueling). 2.The whole structure of Hydraulic Plate rolling machine : -Totally European design,streamlined looking,frames of our machines are fabricated, welded steel (ST-52). Roll shafts, materials and bearings used in production are European quality. Also the torque limit of the machines is very high. NC playback and CNC graphic control systems are available as optional accessory.
