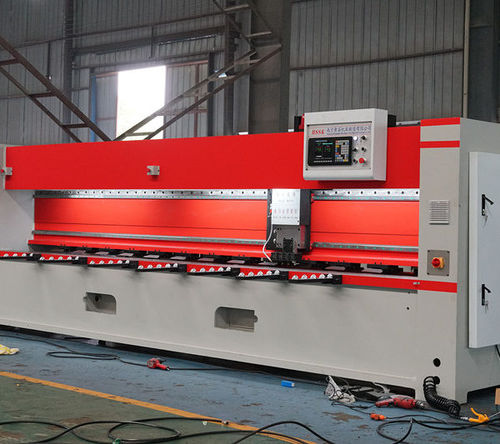

V-shaped grooving machine

CNC

China 6m CNC V Groover machine 6000mm iron plate cnc v grooving cutting machine video link: https://youtu.be/cYtrzJz6o8I Product Features The machine adopts frame structure design and high strength bolted connection, with good overall rigidity and small deformation. The beam of the machine is fixed and work is fed by feeding mechanism. Anvil of workbench can be debugged to guarantee that the flatness of working plane is within 0.003mm. Tool carrier movement (left and right) adopts synchronous belt drive, with stable and efficient cutting process and flat and smooth cutting surface. The machine adopts floor type numerical control post-feeding device, with high positioning precision, stable drive and large processing scope. Description of numerical control system and main components: Numerical control: Taiwan HUST-H4 three-axis numerical control system Servo motor: Yasukawa brand 1.3KW 0.8kw MHMA servo motor Converter: Japan Mitsubishi, power 2.2kw Spindle motor: German sew, power 1.5kw Proximity switch: German Turck 1805 Rolling lead rail pair: GGB45AA rolling lead rail supplied by the well-established manufacturer-Nanjing Technical Equipment Manufacturing Co., Ltd. Ball screw: FFZD4006F-3-P5 and FFZD2004T-3-P5 ball screw supplied by the well-established manufacturer-Nanjing Technical Equipment Manufacturing Co., Ltd. Tool machine cable: The new-generation highly-flexible zipper cable manufactured in Taiwan We supply blades only designed for this type of machine tool. In addition, we offer a one-year warranty and services in the full period.
