Automatic grooving machine
V-shapedCNC

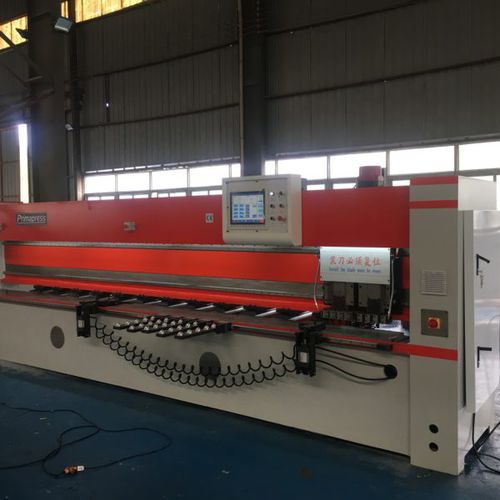

Automatic grooving machine - Prima CNC Machinery - V-shaped / CNC

Automatic grooving machine - Prima CNC Machinery - V-shaped / CNC - image - 2

Automatic grooving machine - Prima CNC Machinery - V-shaped / CNC - image - 3

Automatic grooving machine - Prima CNC Machinery - V-shaped / CNC - image - 4

Automatic grooving machine - Prima CNC Machinery - V-shaped / CNC - image - 5

Add to favorites

Compare this product

Characteristics

Options: automatic, CNC, V-shaped

Description

China Double Head sheet metal cnc v cutting machines cnc v planer machines DESCRIPTION China Double Head sheet metal cnc v cutting machines cnc v planer machines this is Primapress newly developed Double Head sheet metal cnc v cutting machines cnc v planer machines . it can groove the metal sheets from both sides, so the speed is double. https://youtu.be/MHwCKXgTwI8 video link: https://youtu.be/MHwCKXgTwI8 Technical sheets: Max. width of steel sheet to be notched: - 1250mm - 1250mm Max. length of steel sheet to be notched - 4000mm - 3200mm Maximum thickness of steel sheet to be notched: - 6mm steel 4mm stainless steel 6mm steel 4mm stainless steel Min. thickness of steel sheet to be notched - 0.8mm - 0.8mm Max. distance of the beam movement (backward and forward ) - 1250mm - 1250mm Min. distance of V-trough edge: - 15mm - 15mm Max. distance of tool carrier movement (upward and downward) (in the direction of axle Z) - 50mm - 50mm Resolution of tool carrier movement (upward and downward) (in the direction of axle X) - 4300mm - 3400mm Cutting speed: - 15m-60m/min - 15m-60m/min Min. setting unit of axle Y - 0.001mmmm - 0.001mmmm Positioning precision of axle Y - ±0.02mm - ±0.02mm Min. setting unit of axle Z - 0.001mm - 0.001mm Positioning precision of axle Z - ±0.02mm - ±0.02mm Pressure range of gas circuit: - 0.4-0.6mpa - 0.4-0.6mpa Gross weight - 9500kg - 9500kg Dimension: - 5900*2600*2300(mm) - 5100*2600*2300(mm)
