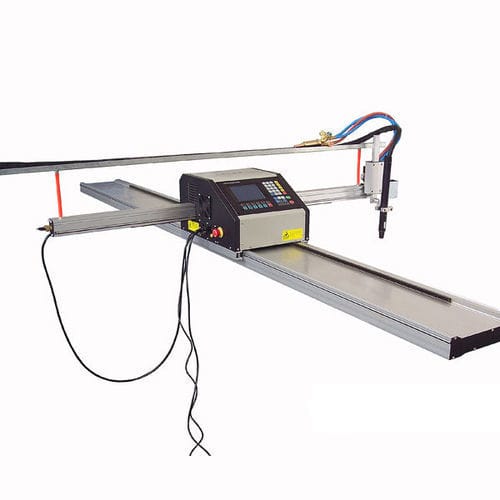

Flame cutting machine HNC-1800W series
plasmafor metalsheet metal

Flame cutting machine - HNC-1800W series - Prima CNC Machinery - plasma / for metal / sheet metal
Flame cutting machine - HNC-1800W series - Prima CNC Machinery - plasma / for metal / sheet metal
Flame cutting machine - HNC-1800W series - Prima CNC Machinery - plasma / for metal / sheet metal - image - 2
Add to favorites
Compare this product


Characteristics

Technology
plasma, flame
Material
for metal
Product handled
sheet metal
Control type
CNC
Other characteristics
high-precision, high-speed, portable
X travel

1,800 mm
(70.87 in)

Y travel

Max.: 6,000 mm
(236.22 in)

Min.: 3,000 mm
(118.11 in)

Cutting speed

Max.: 750 mm/min
(0.492 in/s)

Min.: 50 mm/min
(0.033 in/s)

Weight

Max.: 271 kg
(597.45 lb)

Min.: 175 kg
(385.81 lb)

Description

portable CNC plasma cutting machine, China cheap Portable cnc plasma cutter Product Features (1) Tailored track acquires high-intensity, high-speed and high-precision features. (2) Human computer interface design makes the machine easy to learn and operate, and have complete functions. (3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate. (4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape. (5) With two cutting modes: Flame Cutting & Plasma Cutting. (6) Chinese, English, French, and Portuguese are ready to use. (7) Can automatically memorize and restore when power is off. (8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile, protect the torch form damage and prolong life span of the nozzles. (9) With status indication device. (10) With positioning functions of protection cover, proximity switch and dual-speed. (11) Compatibility of the domestic plasma and foreign-brand plasma.

Catalogs

No catalogs are available for this product.

See all of Prima CNC Machinery‘s catalogs
