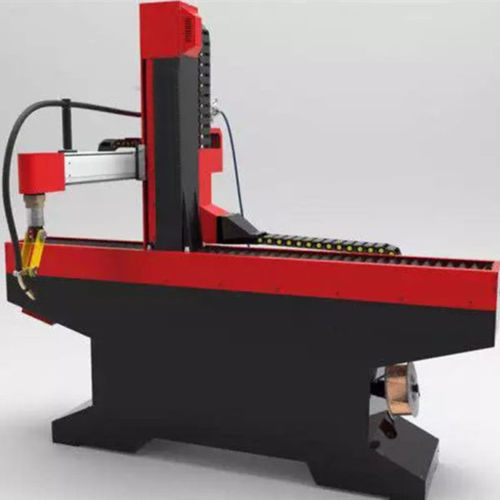

MIG welding machine PM2500

TIGarcrobotic

TIG or MIG 4 axis welding robot with OTC Welding robots Features: The system also controls the four servo axes at the same time movement; 2. Arc starting arc time precise control; 3. Welding start position can be precisely controlled; 4. According to the product of any programming; 5. Weld uniform beautiful fully. The whole module uses a walking mechanism: 1, linear guide + ball screw (Taiwan TBI), 2, electrical components (Schneider of France), 3, double valve solenoid valve (Taiwan Yadeke pneumatic hose (Japan), Yuan Long), 4, pneumatic components (Taiwan Yadeke), 5, cylinder (Taiwan Yadeke), 6, servo reducer (Taiwan East). 7, PLC (Korean LG), 8, intelligent man-machine interface touch screen (Wuxi xinje) . Four-axis welding host description: four-axis CNC welding host with X, Y, Z-axis linear motion and R-axis rotation movement, to achieve the welding of the linear line or curve movement and welding gun and workpiece welding angle adjustment. Thus completing the welding of various types of welding. X, Y, Z axis movement system using AC servo motor drive, ball screw drive, guide rail, to achieve the precise control of walking, R-axis AC servo motor drive, precision planetary reducer after the drive. Can accurately control the welding gun and the workpiece welding angle adjustment requirements, with X, Y, Z axis to achieve the completion of the welding process.
