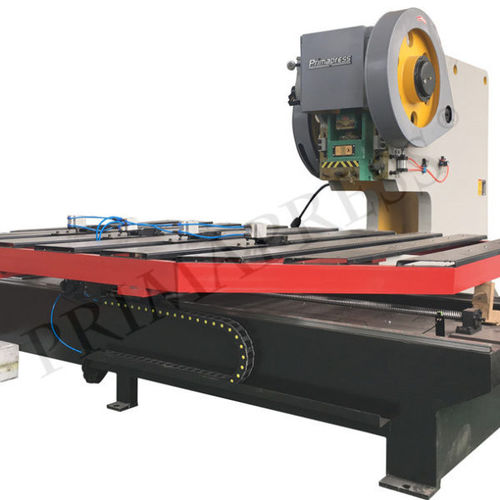

Manual press J21S series

pneumaticmechanicalpunching

Deep throat press machine with cnc feeding table mechanical Deep-throat press machine Automatic Feeder Table For Punching machine , Scope, Specification and Standard feature 1) Effective stroke This is Max. sheet size for punching in first locating too. It’s capable to punching 1000 wide sheet by means of turning around the sheet in second locating and the system assures position accuracy automatically. It have also automatic positioning of sheets. So the sheets can alwasy be put in the right position. 2) Accuracy ±0.1mm for distance between holes,Center linearity of holes ±0.1mm. 3) Feed Speed 4) overall Dimension 5) Casting Frame, Tempered. 6) linear guide way and precision ball screw. 7) Table surface with balls or nylon brushes. 8) Pneumatic/manual Clamps(optional). 9) Dorna actuating motor. 10) One Set Electrical Control and Control cabinet 11) Control System ADTECH. The system is original created, which will be upgraded periodically, and allow automatic conversion and punching from AutoCAD. 12) Automatic reposition function, better for large volume production. 13) Control Cabinet (Main Operation Desk), with industrial PC and display 14) Power Supply: 3 KVA 380V/3 ph, 50Hz.(In accordance with power supply on site ) 15) PLC is Xinjie Brand and servo motor is Beijing Huada 16) Precion ball screw and linear rail from Taiwan 17) Pneumatic clamping device
