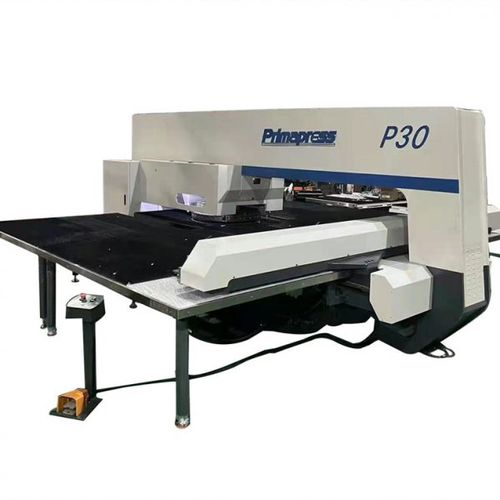

Continuous punching machine P30

pneumaticsheet metalpunching

China metal plate hole CNC Turret punch machine cnc turret punching machine with index mold Machine Feature Advanced and reliable Hydraulicdrive system can select stroke automatically corresponding to different thickness of metal sheet and is convenient to realize special process of louver, blanking, etc. The punch is equipped with auto Hydraulicoverload protection device, and guarantees consistent pressing force for quality products. The punch is of FANUC 0iP control system. Rotary tooling stations are of worm wheel structure with max. punching diameter of Ф50.8. Dual turret is of long insert structure ensuring coaxiality of the punch and die, which gives long life to the tool and turret. Imported pneumatic and Hydrauliccomponents guarantee reliability of the machine. Imported ballscrews with long travel, and linear guideways ensure transmission precision. The worktable with hard brush and steel ball reduces noise and shock of the machine, and protects surface of the work piece. The machine is straight-side frame, which is annealed for eliminating inner stress. The clamps with auto protection function, in the protective zone, only excise movement without punching action for continuous operation. 10．Central lubrication device provides lubricant oil to the desired points to reduce friction of pairing elements for long machine life. 12．Tool station layout consists of A、B、C、D, which is convenient for the customer and save the tool cost. 13．Common requirement is for site foundation preparation and machine installation is simple.
