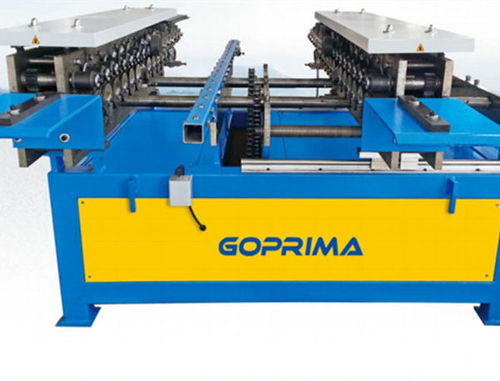

Duct forming machine

metalCNCPLC-controlled

Air duct pipe Double TDF flange machine Doublex TDF Flange forming machine One. Features TDF unit is one of the two universal flange making systems in the world, with low cost, well-seal and easy-fabrication, specially suitable to produce a duct with medium section area and applied in large-scale industrial manufacture. As a flexible machine, TDF will adapt to an auto line with a Pittsburgh lock machine, notcher and bending machine. It may also be used on site. TDF system is divided into two types: T-12,T-15, T-12, T-15 form one side into clip“ ”and the other side into flange “ ” at the same time. TDF may be commonly used for its width ranges from . Its maximum work speed. Two. Technical Data: Model - Motor - Capacity (mm) - Shape - “a” - Weight (kg) - Dimension (L*W*H) (kw) “a” Size - (mm) (mm) - T-12 - 3 - 0.8-1.2 - - 35±0.5 - 1400 - 2800×700×1000 T-15 - 4 - 0.6-1.5 - - 35±0.5 - 1800 - 3200×750×1000 2-T12 - 3.7 - 0.8-1.2 - - 35±0.5 - 3000 - 3200×2700×1100
