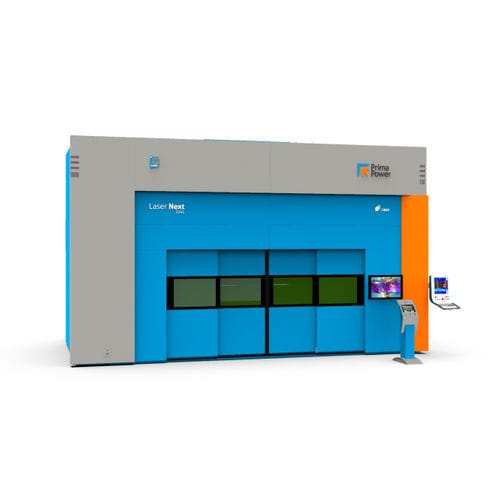

3D laser cutting machine Laser Next 2141
for metalsheet metalautomatic

3D laser cutting machine
3D laser cutting machine
3D laser cutting machine
3D laser cutting machine
3D laser cutting machine
3D laser cutting machine
3D laser cutting machine
3D laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
3D laser
Material
for metal
Product handled
sheet metal
Other characteristics
automatic, high-efficiency, combined, fixed, large capacity, front
X travel

4,140 mm
(162.99 in)

Y travel

2,100 mm
(82.68 in)

Z travel

1,020 mm
(40 in)

Cutting speed

120,000 mm/min
(78.74 in/s)

Laser power

3,000 W, 4,000 W

Description

Laser Next 2141 is designed and developed to satisfy the needs of stamped-metal-parts manufacturers in diversified industrial sectors, such as job shops, press shops, aerospace, agricultural, automotive, and provides them an unparalleled flexibility in terms of processes, part sizes, and configurations, combined with state-of the-art performance, quality, and accuracy. The Laser Next 214 combines the efficiency and productivity of the other Laser Next products with a unique flexibility. Thanks to multiple machine configurations (fixed tables, split cabin, shuttles and turn table) it can meet any production need: Fixed Tables configuration: the standard version with Fixed Tables exploits the entire working envelope to process large parts and features great accessibility from all sides. Split Cabin configuration: with the Split Cabin configuration, the working volume is separated by a removable wall and a sliding roof into two halves, where the parts are alternatively processed or loaded/unloaded in total safety. In this way, machine productivity is increased and, when needed for larger parts, the wall can be removed to restore the entire working envelope. Shuttle Tables configuration: the Shuttle Tables version allows the fast and automatic movement of parts and fixtures outside the working area from the sides or the front of the machine. This is the solution for allowing large and heavy parts to be handled outside the working area and in case of complex set-up. Combined with the Split Cabin, the Shuttle Tables configuration also allows cover time operations

VIDEO

Catalogs
