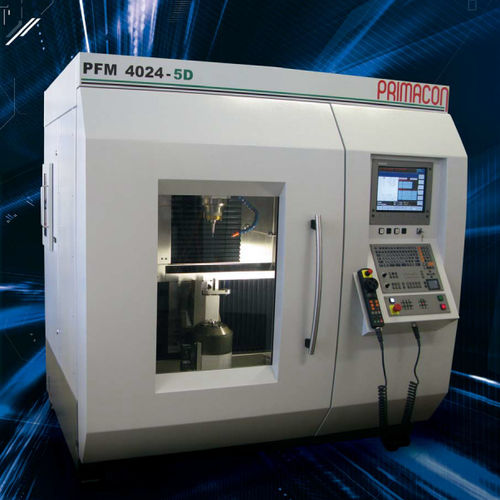

5-axis CNC machining center PFM 4024-5Dvertical3-spindleHSK-E40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Number of spindles
- 3-spindle
- Spindle mount
- HSK-E40, HSK-E32
- Other characteristics
- high-speed, high-precision, for micro-machining, with automatic tool changer
- X travel
400 mm
(15.75 in)- Y travel
240 mm
(9.45 in)- Z travel
350 mm
(13.78 in)- Rotational speed
Max.: 60,000 rpm
(376,991 rad.min-1)Min.: 300 rpm
(1,885 rad.min-1)- Power
11 kW, 12 kW, 16 kW
(14.96 hp, 16.32 hp, 21.75 hp)- Tool-changing time
6 s
- Weight
3,100 kg
(6,834.33 lb)
Description
From high-precision milling machines we expect not only extreme accuracy in the micron range, but also the achievement of excellent surface qualities. On the other hand should be guaranteed stable processes without temperature drift or vibrations and the ability of enormous spindle speeds. A balancing act that the Primacon PFM 4024-5D copes brilliantly.
