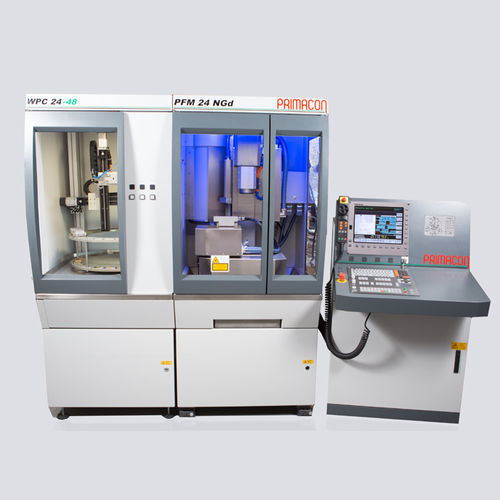

Micro-machining CNC machining center PFM 24 NGd3-axisvertical3-spindle
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Number of spindles
- 3-spindle
- Spindle mount
- HSK-E32
- Other characteristics
- precision, for micro-machining, with automatic tool changer
- X travel
240 mm, 344 mm
(9.45 in, 13.54 in)- Y travel
240 mm, 295 mm
(9.45 in, 11.61 in)- Z travel
180 mm, 240 mm
(7.09 in, 9.45 in)- Rotational speed
Min.: 300 rpm
(1,885 rad.min-1)Max.: 140,000 rpm
(879,646 rad.min-1)- Power
0.26 kW, 3.9 kW, 6 kW
(0.35 hp, 5.3 hp, 8.16 hp)- Tool-changing time
5 s
- Weight
1,000 kg
(2,204.62 lb)- Overall length
1.9 m
(6'02" )- Overall width
2.2 m
(7'02" )- Overall height
1.6 m
(5'02" )
Description
Feed / Rapid Traverse -
Linear Axis 12 m/min
B-Axis (Pivot Axis) 5.500 °/min
C-Axis (Axis of Rotation) 21.000 °/min
Torque -
B-Axis (Pivot Axis) 60 Nm
C-Axis (Axis of Rotation) 280 Nm
CNC Control -
Heidenhain TNC 640
