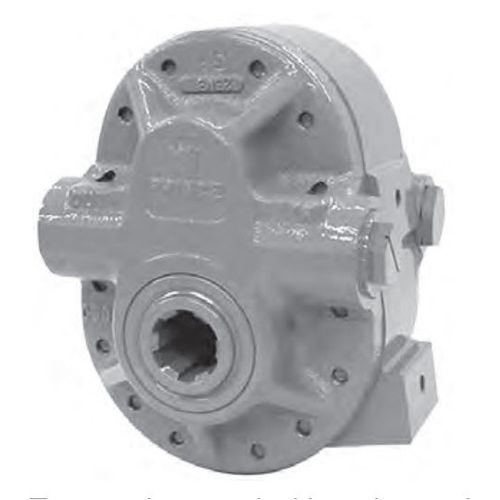

Hydraulic gear pump HC series

aluminumcast ironfor power take-off

PTO Pumps Prince PTO pumps are specifically designed for PTO drive operation on all sizes of farm tractors. No additional gearbox is required. Pumps are mounted by sliding the internally splined pump onto the PTO splined shaft and restraining rotation with a torque arm. See page P6 for the PTO pump torque arm kit. UNIQUE FEATURES: • Self-adjusting wear plates on both sides of the gears. • Proper size hose adapters are provided for inlet ports. • Two outlet ports are provided with a NPT adapter for one port and a plug to seal unused port. • Center section available in high strength aluminum alloy for std. duty cycle or in high trength cast iron for high duty cycle use. PLUS STANDARD FEATURES: • Reliable • Efficient • Roller Bearings • Run fitted body • Internally splined drive shaft. • High-tensile cast iron end plates. • Slips onto tractor PTO shaft (no gear box required). • Two-bolt installation on farm tractors of all sizes. • Rotary mowers • Street Sweepers • Back hoes IDEAL FOR USE WITH • Tractor front end loaders • Pull-type cotton pickers • Cotton balers (module builders) • Tractors imported without integral hydraulics • Landscape equipment
