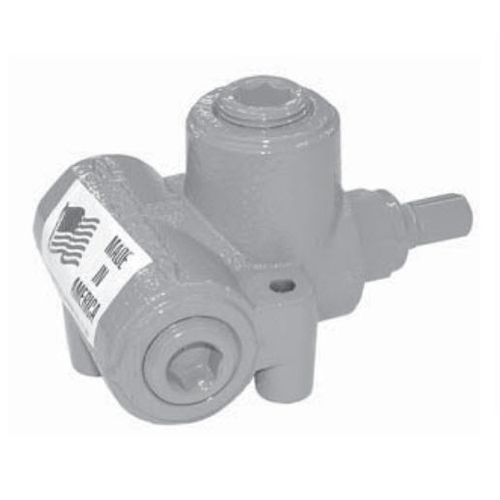

Hydraulic relief valve RV series

differentialin-linecartridge

SPECIFICATIONS Pressure Rating Maximum Operating Pressure ........ 3000 psi Adjustment Range ............ 500 psi to 3000 psi Flow Rating .....................................30 GPM Filtration: For general purpose valves, fluid cleanliness should meet the ISO 4406 19/17/14 level Maximum Operating Temp................180°F Weight .................................... Approx 3 Ibs SPECIFICATIONS The PRINCE valve model RV is a differential poppet type inline relief. The valve is made up of a relief cartridge and a cast iron valve body. The differential poppet type relief provides smooth quiet performance with a minimum variation between cracking and full flow pressures. This type relief is also less sensitive to system contamination. The model RV is well suited as a system relief up to 30 GPM and 3000 psi. It is available in two pressure ranges and both an externally adjustable and shim adjustable version.
