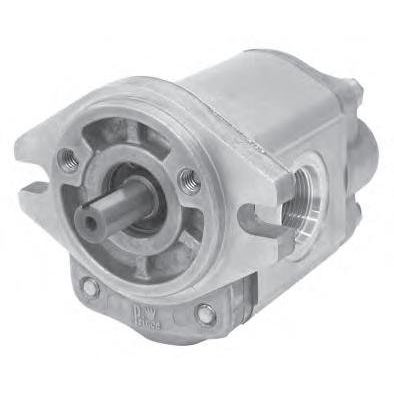

Hydraulic gear pump SP20 series

aluminumflange

- Patented Non-Symmetrical Gears - PTFE composite bearings - One piece hardened alloy steel gears and driveshaft - Pressures up to 3000 psi - SAE "A" 2 bolt mounting - 5 drive shaft configurations available - .400 to 2.014 ci displacement The SP20B pump now utilizes self-lubricating thrust blocks that eliminate the need for separate wear plates. They are made from a high strength aluminum alloy with exceptional anti-galling properties. This new thrust block design also incorporâtes advanced bearings designed specifically for high pressure hydraulic pumps. This new bearing features a robust fluoropolymer PTFE wear surface that yields unsurpassed load carrying capabilities and cavitation résistance even at low speeds and moderate levels of contamination. Also, since the PTFE resin layer is self-lubricating, contamination from bearing wear in high load situations (when no oil film is présent) is reduced. This new thrust block design combined with these advanced bearing results in lower friction and less internai oil loss resulting in higher pump efficiencies.
