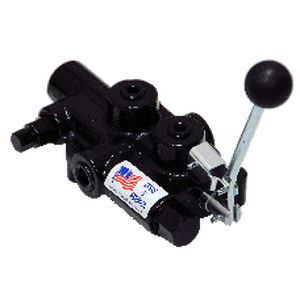

Spool hydraulic directional control valve LS3000 series

lever-operated4/3-way3-way

Log Splitter Valve Model LS3000 Logsplitter Valve - 25 GPM STANDARD FEATURES Hydraulically balanced, hard chrome plated spool Handle can be installed in “up” or “down” position Detent release pressure adjustable from 1000 to 2000 PSI For use with system flows up to 25 GPM Relief valve adjustable up to 2750 PSI Tandem center spool (in neutral position, both work ports blocked, pump unloaded to tank) Ideal for log-splitter applications. Available with 3/4” NPTF work ports for higher flow applications See Catalog Pages pdf for complete details and options. SPECIFICATIONS Pressure Rating Maximum Operating Pressure ........ 2750 psi Maximum Tank Pressure................... 150 psi Nominal Flow Rating ...........................25 GPM Relief valve setting-2250 PSI Filtration: For general purpose valves, fluid cleanliness should meet the ISO 4406 19/17/14 level Maximum Operating Temp...........................180°F Weight .................................... Approx 10 Ibs
